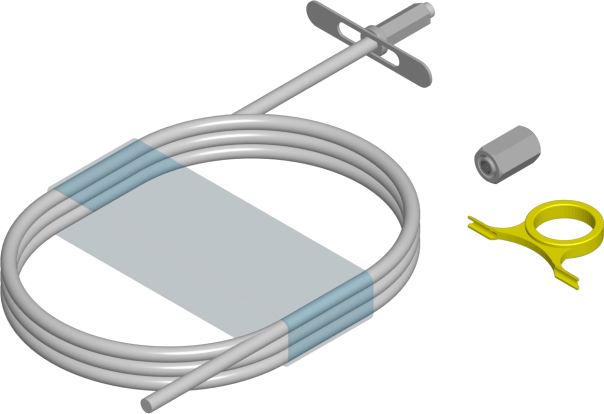

LZ1 Hanger - Toggle End

Overview

Application
For suspending lighting system components, cable wires, loud speakers, alarm sensors, signs, piping and other elements.

Material
Electro-galv. steel (EG)

Back to top ↑

Versions

Symbol Length L [m] Catalogue number Quantity in box Size o [mm] Maximum load Fmax[kN]
LZ1/1 1000 651761 20 2 0,19
LZ1/2 2000 651861 20 2 0,19
LZ1/3 3000 651961 20 2 0,19
LZ1/5 5000 652061 20 2 0,19
LZ1/10 10000 652161 20 2 0,19
Add to project
Back to top ↑

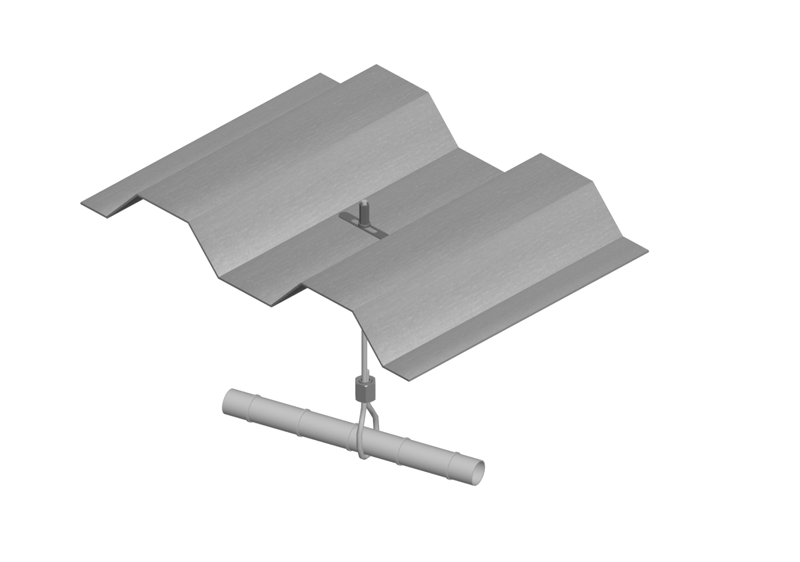

Examples
