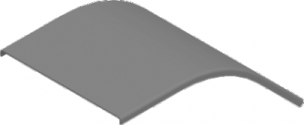

PLZZMPH100 Cover For 45° Vertical Bend - External H100

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)


Back to top ↑

Versions

Sheet thickness: 1,5 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PLZZMP100H100 100 332710 20 0,51
PLZZMP200H100 200 332720 10 0,97
PLZZMP300H100 300 332730 10 1,42
PLZZMP400H100 400 332740 4 1,87
PLZZMP500H100 500 332750 4 2,27
PLZZMP600H100 600 332760 4 2,70
