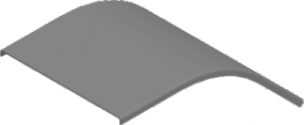

PLZZMPH200 Cover For 45° Vertical Bend - External H200

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)


Back to top ↑

Versions

Sheet thickness: 1,5 mm

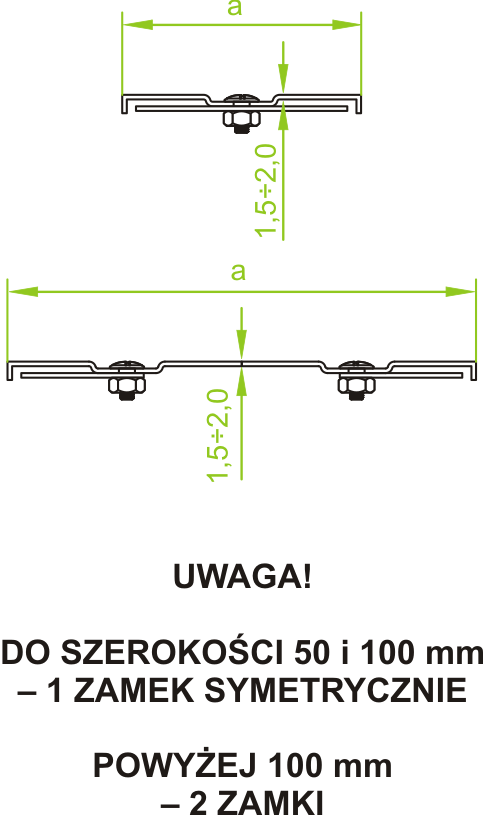

Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PLZZMP200H200 200 333110 10 1,16
PLZZMP300H200 300 333120 10 1,70
PLZZMP400H200 400 333130 4 2,24
PLZZMP500H200 500 333140 4 2,78
PLZZMP600H200 600 333150 4 3,32
