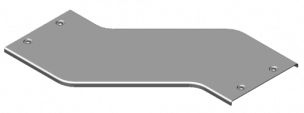

POLZZC Cover For Horizontal Bypass - Left H50, H100

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

Back to top ↑

Versions

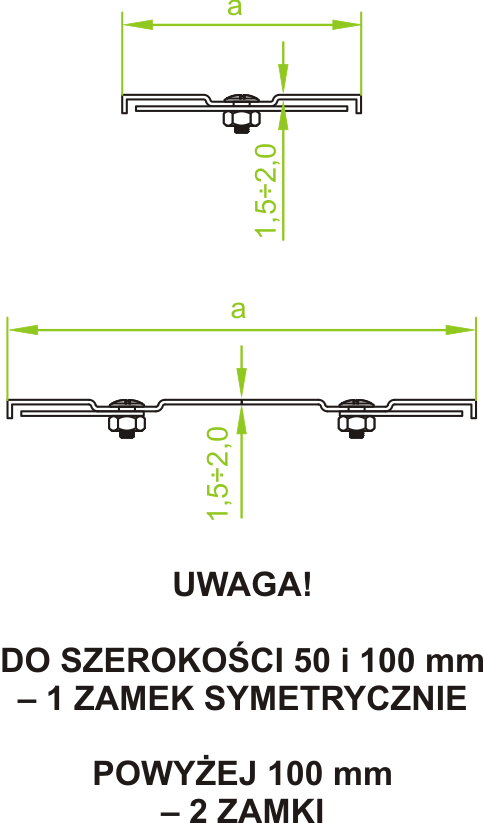

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
POLZZC 50 50 316005 20 0,34
POLZZC100 100 316010 20 0,67
POLZZC200 200 316020 10 1,21
POLZZC300 300 316030 10 1,74
POLZZC400 400 316040 4 2,27
POLZZC500 500 316050 4 2,80
POLZZC600 600 316060 4 3,33
