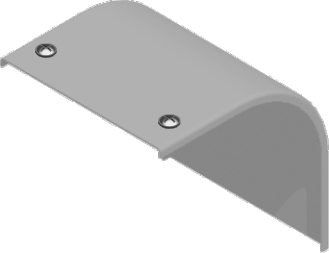

PZLZZCH200 Cover For 90° Vertical Bend - External H200

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

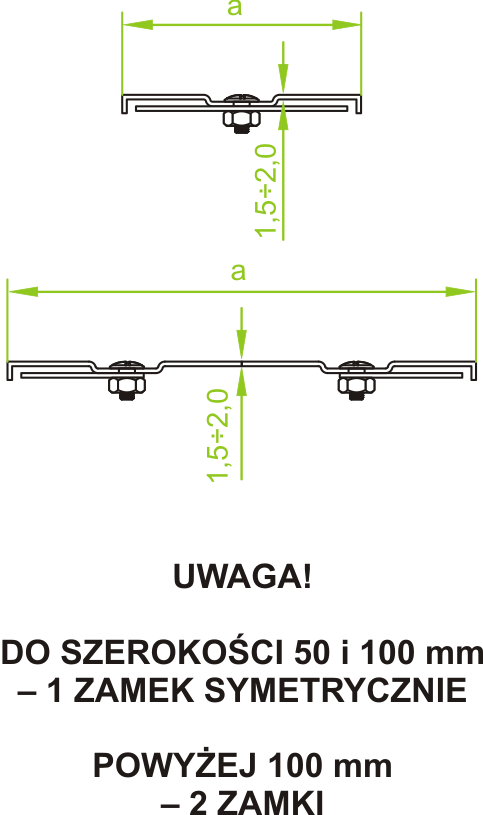

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZLZZC200H200 200 332410 10 2,71
PZLZZC300H200 300 332420 10 3,86
PZLZZC400H200 400 332430 4 4,92
PZLZZC500H200 500 332440 4 6,12
PZLZZC600H200 600 332450 4 7,32
