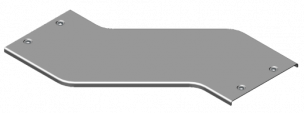

PZOLZZP Cover For Horizontal Bypass - Left H50, H100

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

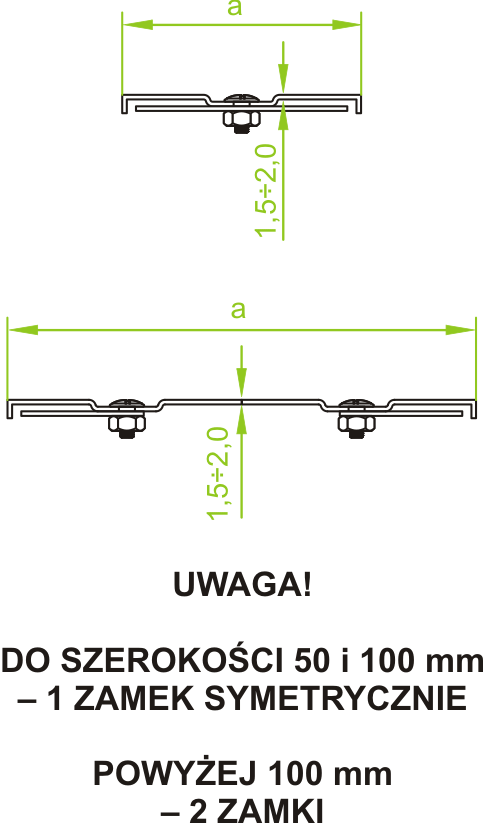

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 1,5 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZOLZZP 50 50 316205 20 0,26
PZOLZZP100 100 316210 20 0,51
PZOLZZP200 200 316220 10 0,91
PZOLZZP300 300 316230 10 1,31
PZOLZZP400 400 316240 4 1,71
PZOLZZP500 500 316250 4 2,11
PZOLZZP600 600 316260 4 2,51
