PZOLZZPH200 Cover For Horizontal Bypass - Left H200

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

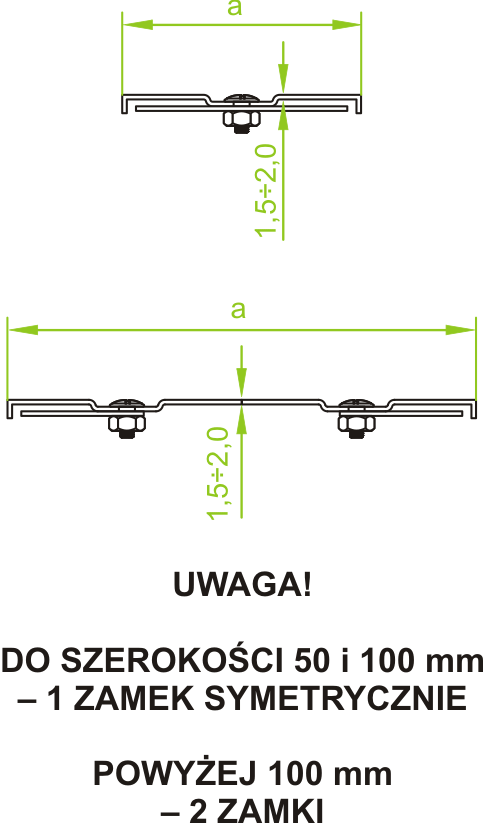

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 1,5 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZOLZZP200H200 200 334110 10 1,55
PZOLZZP300H200 300 334120 10 2,10
PZOLZZP400H200 400 334130 4 2,70
PZOLZZP500H200 500 334140 4 3,25
PZOLZZP600H200 600 334150 4 3,80
