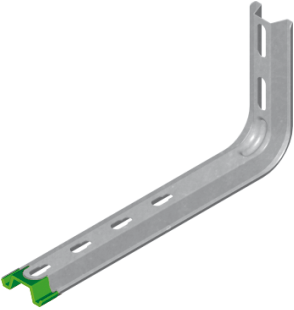

WFML Bracket

Overview

APPLICATIONS
Supporting cable trays.



MATERIAL:
Steel, strip-galv. acc. to the Sendzimir method
to PN-EN 10346:2011 (SG).
Available finishes:
F - steel, hot-dip galv. to
PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder painting in standard RAL color



In installation the application of
Spacer PD9


IMPORTANT! Non-standard lengths of brackets
available to special order

Back to top ↑

Versions

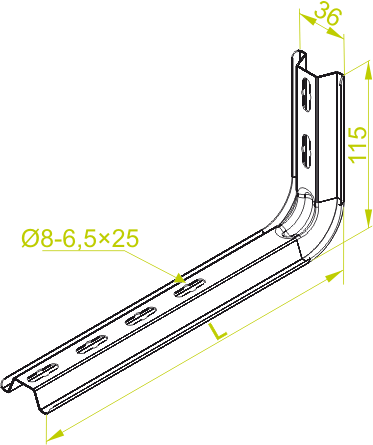

Symbol Length L [m] Catalogue number Quantity in box Weight 1 pc. Maximum load Fmax[kN]
WFML50 108 720112 30 0,13 0,45
WFML100 158 720111 30 0,16 0,40
WFML150 208 720116 30 0,19 0,35
WFML200 258 720121 30 0,22 0,30
Add to project
Back to top ↑

Examples
