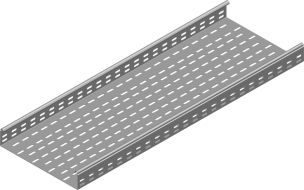

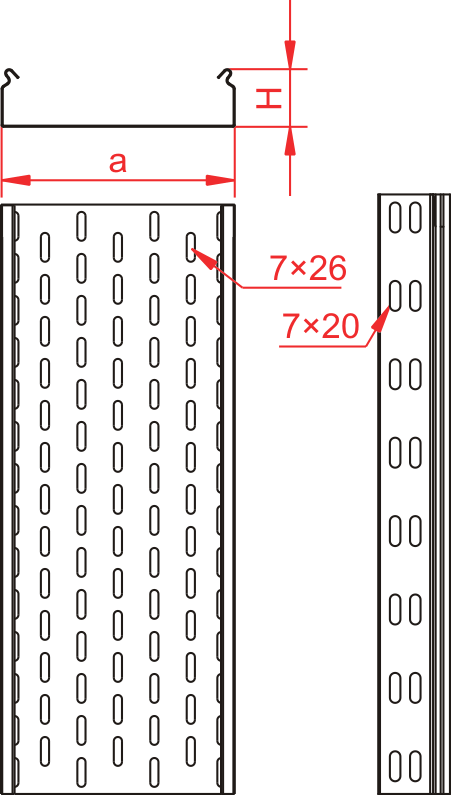

Application
Cable routing

Material
Steel, strip-galv. acc. to the Sendzimir method to PN-EN 10346:2011 (SG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

In order to:
- join 2 sections of cable trays together use 1 pair of Straight
Connestors LPOPH60N or LPOPH60E and 16 sets of Screw
SGN M6×12 or SGN M6×12 E, Joint Protection Plate BLO N
or BLO E depending on cable tray width range – for 100-200mm
use min 4 sets of Screw, and for width range - 300-400mm – 6 sets
of Screw SGN M6×12 or SGN M6×12 E
- to end cable run floors of cable trays use Edge Protection Plates
BZKO N or BZKO E depending on the cable tray width -
for 100-200mm width range – with min 2 Screw sets, and for
300-400mm width range – with min 3 sets of Screw SGN M6×12
or SGN M6×12 E
- for changing directions in cable trays routing in the vertical plane
use1 pair of Articulated Connector LGOPH60N or LGOPH60E
with 8 sets of Screw SGN M6×12 or SGN M6×12 E in combination
with 2 pieces of Edge Protection Plates BZKO N or BZKO E
depending on cable tray width
- for 100-200mm range with min 4 sets, and for 300-400mm
range – with min 6 sets of Screw SGN M6×12 or SGN M6×12 E
- for changing directions in cable trays routing in the horizontal
plane use 1 pair of Angle Connector LKOJH60N
or LKOJH60E with 16 sets of Screw SGN M6×12 or SGN M6×12 E,
together with Joint Protection Plate BLO N or BLO E, depending
on cable tray width - for 100-200mm range - with min 4 sets,
and for 300-400mm range – with min 6 sets of Screw SGN M6×12
or SGN M6×12 E.
