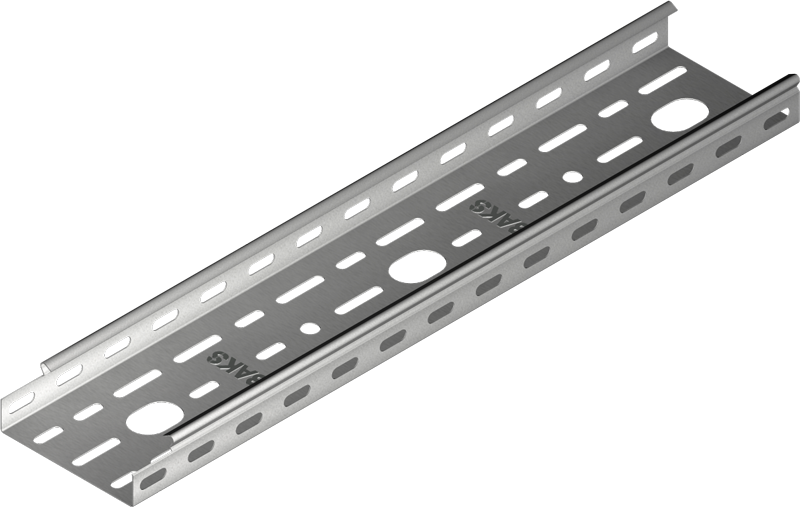

KPL Cable Tray
Overview
End of production in the fourth quarter of 2014
Application
Cable routing
Material
Steel, strip-galv. acc. to the Sendzimir method to PN-EN 10346:2011 (SG)
Available to order:
L- powder coating in a full range of colours (PC)
Important! Possibility of joining cable tray sections together through sliding one into another and connector-free assembly. To install cable tray use Screw Sets SGK M6x10 or SG M6x10.
Note: Improved perforation of Cable Trays
KPR, KPL and KPJ 35mm wide.
The smallest size of all cable trays from BAKS,
ideal for distributing small gauge wires feeding
small electrical appliances. Connecting tray
sections through sliding them one into another
and screwing up.
This eliminates the need to apply connectors.
Universal perforation in the bottom tray
for direct attachment to walls and will suit
all types of cantilever brackets from BAKS.
|
|
|
|
|
