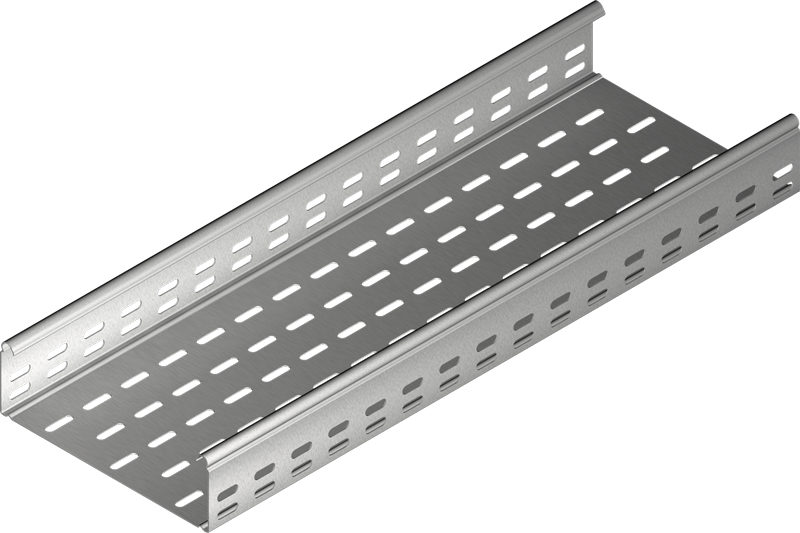

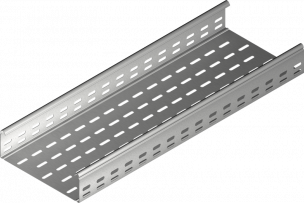

KRJN Cable Tray

Overview

Application
Cable routing

Material
Steel, strip-galv. acc. to the Sendzimir method to PN-EN 10346:2011 (SG)

Available to order:
F- steel, hot-dip galv. to PN-EN ISO 1461:2011 (HDG)
L- powder coating in a full range of colours (PC)



IMPORTANT! Available when ordering in large quantity are 2m
long tray sections. For the installation use Snap-In Connector LZL...
or Snap-In Connector Set LSL... with screw sets SGK M6x12 or SG M6x12.

Back to top ↑

Versions

Sheet thickness: 1,0 mm
Symbol Length L [m] Width a [mm] Catalogue number Quantity in box Weight [1m] Effective section
KRJ100H60/3 3000 100 161706 6 1,60 5800
KRJ100H60/6 6000 100 161806 4 1,60 5800
KRJ150H60/3 3000 150 162006 6 1,92 8800
KRJ150H60/6 6000 150 162106 4 1,92 8800
KRJ200H60/3 3000 200 162306 6 2,24 11800
KRJ200H60/6 6000 200 162406 4 2,24 11800
KRJ300H60/3 3000 300 162307 6 2,96 17800
KRJ300H60/6 6000 300 162407 4 2,96 17800
