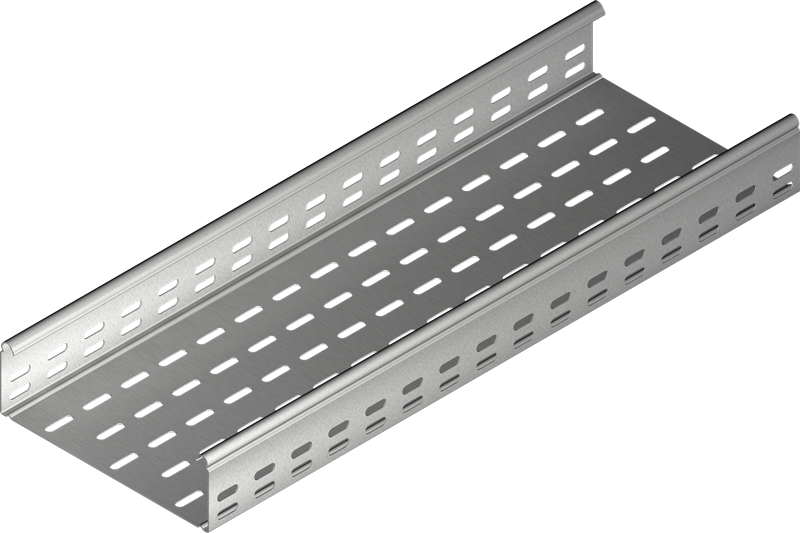

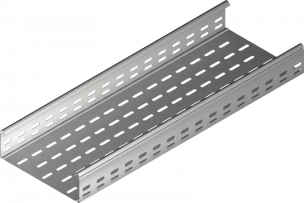

KRLN Cable Tray

Overview

Application
Cable routing

Material
Steel, strip-galv. acc. to the Sendzimir method to PN-EN 10346:2011 (SG)

Available to order:
L- powder coating in a full range of colours (PC)



IMPORTANT! Available when ordering in large quantity are 2m
long tray sections. For the installation use Snap-In Connector LZL...
or Snap-In Connector Set LSL... with screw sets SGK M6x12 or SG M6x12.

Back to top ↑

Versions

Sheet thickness: 0,7 mm
Symbol Length L [m] Width a [mm] Catalogue number Quantity in box Weight [1m] Effective section
KRL100H60/3 3000 100 160806 6 1,12 5800
KRL100H60/6 6000 100 160906 4 1,12 5800
KRL150H60/3 3000 150 161106 6 1,35 8800
KRL150H60/6 6000 150 161206 4 1,35 8800
KRL200H60/3 3000 200 161406 6 1,59 11800
KRL200H60/6 6000 200 161506 4 1,59 11800
KRL300H60/3 3000 300 161407 6 2,18 17800
KRL300H60/6 6000 300 161507 4 2,18 17800
