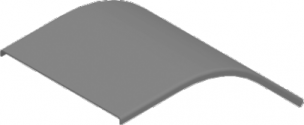

PLZZMCH50 Cover For 45° Vertical Bend - External H50

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)


Back to top ↑

Versions

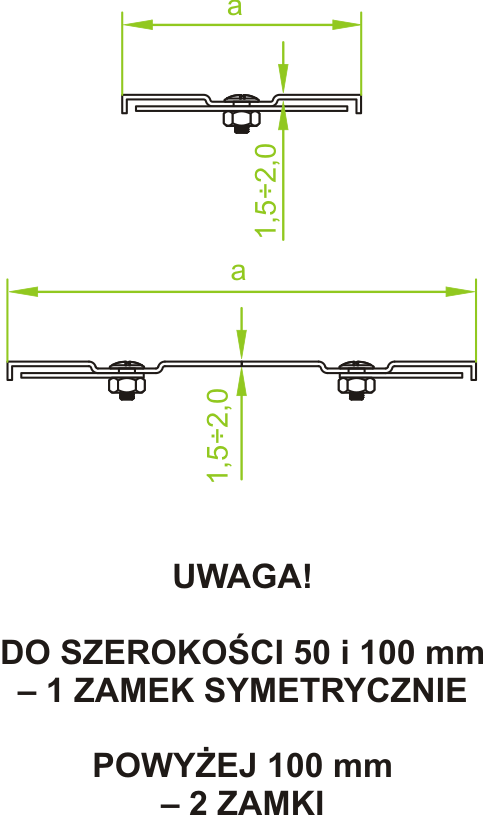

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PLZZMC50H50 50 335605 20 0,24
PLZZMC100H50 100 335610 20 0,44
PLZZMC200H50 200 335620 10 0,82
PLZZMC300H50 300 335630 10 1,60
PLZZMC400H50 400 335640 4 2,00
PLZZMC500H50 500 335650 4 2,39
PLZZMC600H50 600 335660 4 2,53
