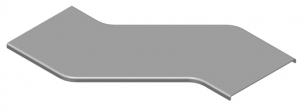

POLZZP Cover For Horizontal Bypass - Left H50, H100

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:

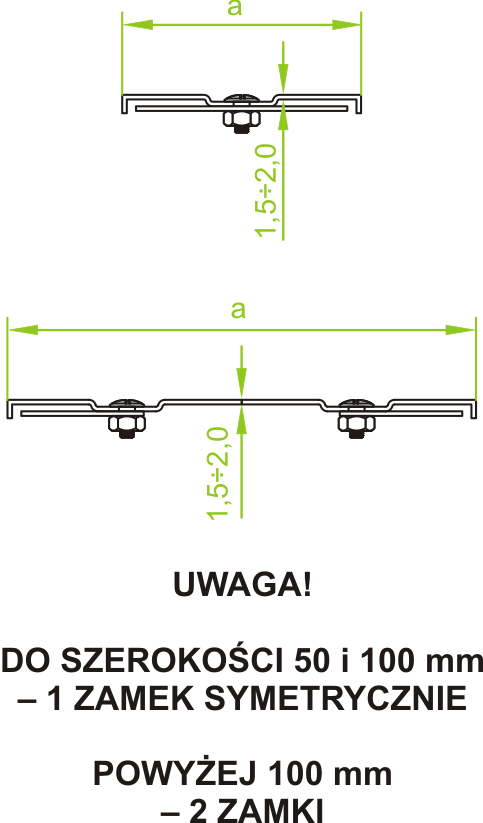

In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

Back to top ↑

Versions

Sheet thickness: 1,5 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
POLZZP 50 50 316105 20 0,26
POLZZP100 100 316110 20 0,51
POLZZP200 200 316120 10 0,91
POLZZP300 300 316130 10 1,31
POLZZP400 400 316140 4 1,71
POLZZP500 500 316150 4 2,11
POLZZP600 600 316160 4 2,51
