PZLZWCH100/H200 Cover For 90° Vertical Bend - Internal H100, H200

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

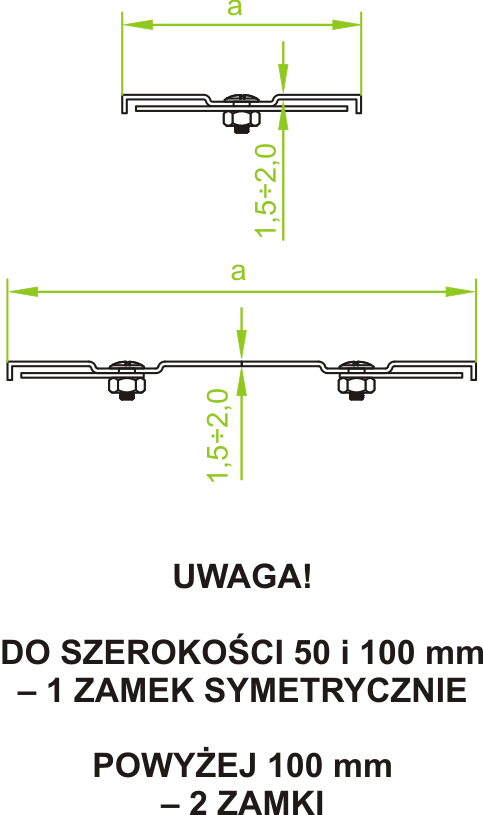

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZLZWC100 100 303510 20 0,84
PZLZWC200 200 303520 10 1,60
PZLZWC300 300 303530 10 2,25
PZLZWC400 400 303540 4 2,90
PZLZWC500 500 303550 4 3,55
PZLZWC600 600 303560 4 4,20
