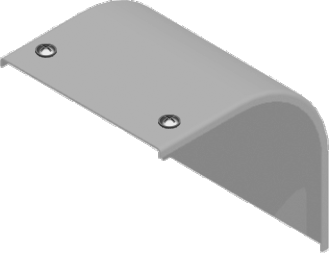

PZLZZCH50 Cover For 90° Vertical Bend - External H50

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

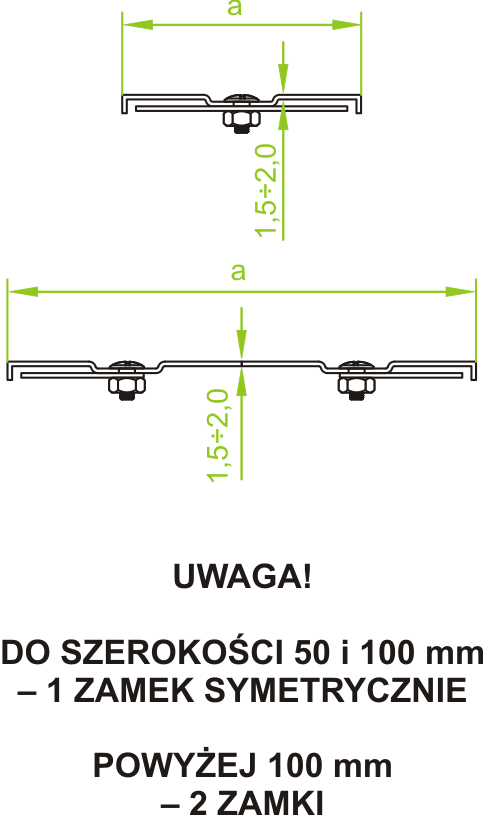

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZLZZC50H50 50 335405 20 0,43
PZLZZC100H50 100 335410 20 0,70
PZLZZC200H50 200 335420 10 1,30
PZLZZC300H50 300 335430 10 1,84
PZLZZC400H50 400 335440 4 2,35
PZLZZC500H50 500 335450 4 2,90
PZLZZC600H50 600 335460 4 3,40
