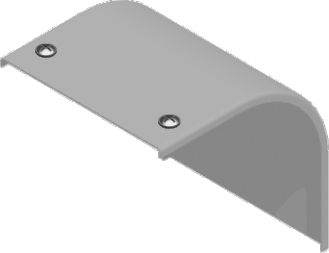

PZLZZPH100 Cover For 90° Vertical Bend - External H100

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

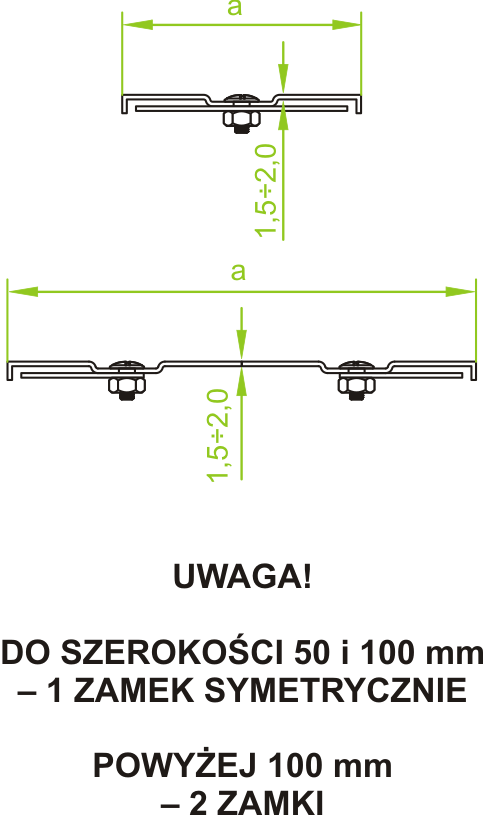

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 1,5 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZLZZP100H100 100 331910 20 0,87
PZLZZP200H100 200 331920 10 1,65
PZLZZP300H100 300 331930 10 2,65
PZLZZP400H100 400 331940 4 3,00
PZLZZP500H100 500 331950 4 3,68
PZLZZP600H100 600 331960 4 4,36
