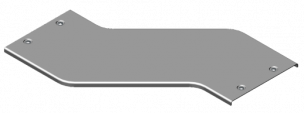

PZOLZZCH200 Cover For Horizontal Bypass - Left H200

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

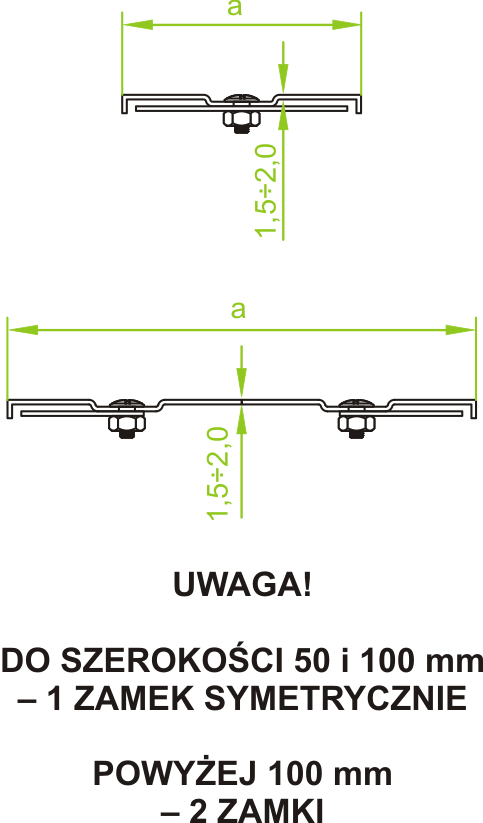

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZOLZZC200H200 200 334210 10 2,06
PZOLZZC300H200 300 334220 10 2,79
PZOLZZC400H200 400 334230 4 3,59
PZOLZZC500H200 500 334240 4 4,32
PZOLZZC600H200 600 334250 4 5,05
