PZOPNZCH100 Cover For Vertical Bypass H100

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

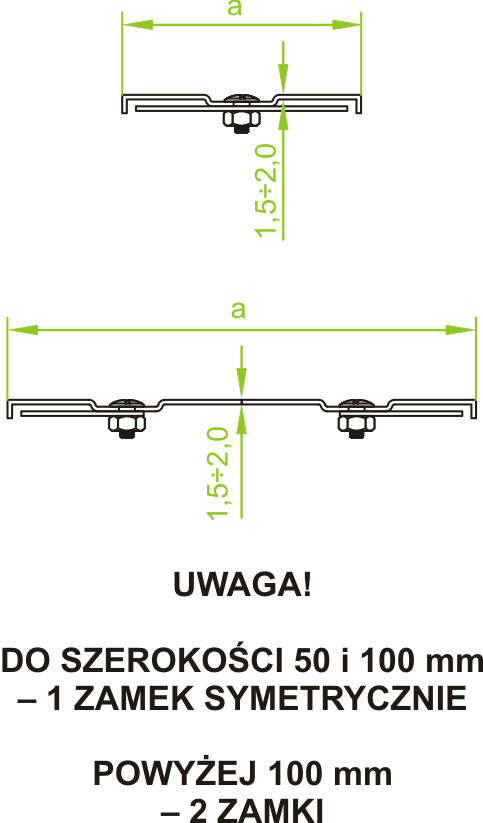

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZOPNZC100H100 100 334610 20 1,09
PZOPNZC200H100 200 334620 10 1,85
PZOPNZC300H100 300 334630 10 2,35
PZOPNZC400H100 400 334640 4 2,47
PZOPNZC500H100 500 334650 4 2,95
PZOPNZC600H100 600 334660 4 3,09
