PZOPNZCH50 Cover For Vertical Bypass H50

Overview

APPLICATION
Protecting cables against damage. Tight cover protection against accumulation of dirt and dust.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Note:
In every cover are pre-punched holes, necessary for dipping-in
melted zinc (ref. hot-dip galvanizing process)

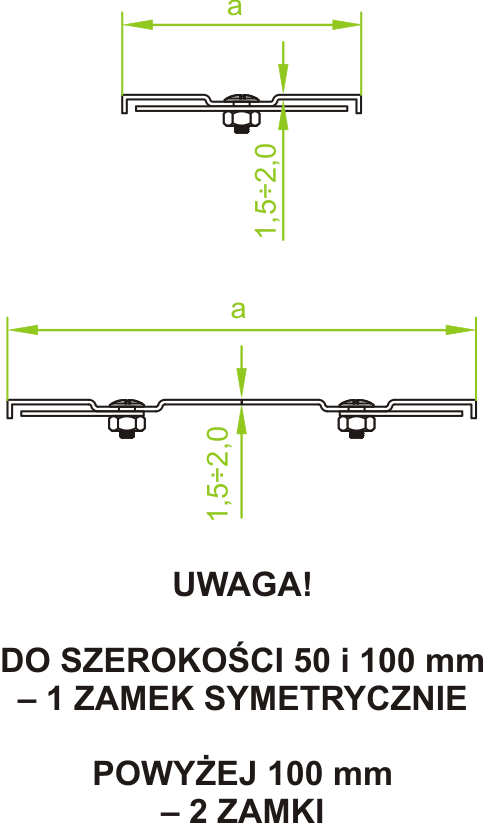

Cover with a lock
NOTE: UP TO 50 and 100mm WIDE – 1 LOCK - SYMMETRICALLY
OVER 100mm WIDE – 2 LOCKS

Back to top ↑

Versions

Sheet thickness: 2,0 mm
Symbol Width a [mm] Catalogue number Quantity in box Weight 1 pc.
PZOPNZC50 50 336205 20 0,30
PZOPNZC100 100 336210 20 0,65
PZOPNZC200 200 336220 10 1,27
PZOPNZC300 300 336230 10 1,90
PZOPNZC400 400 336240 4 2,52
PZOPNZC500 500 336250 4 3,15
PZOPNZC600 600 336260 4 3,77
