WD Hanger

Overview

Application
Suspending cable routes and profiles.

Material
Electro-galvanised steel (EG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

Back to top ↑

Versions

Symbol Width a [mm] Catalogue number Quantity in box Height H [mm] Weight 1 pc. Maximum load Fmax[kN]

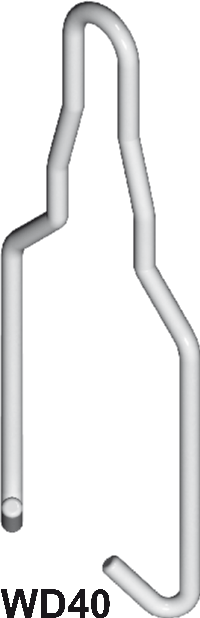

WD40 40 900000 100 128 0,03 1,10

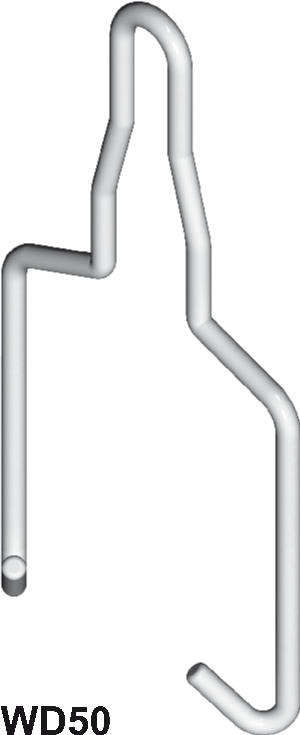

WD50 50 910000 100 127 0,03 0,90

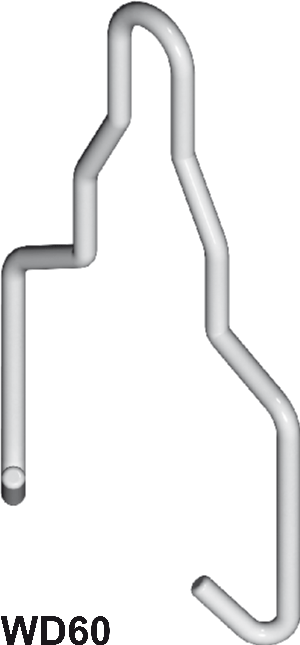

WD60 60 920000 100 115 0,03 0,55

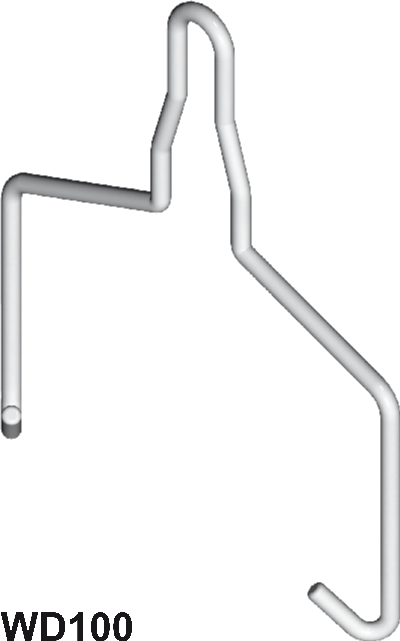

WD100 100 940000 50 130 0,03 0,40
Add to project
Back to top ↑

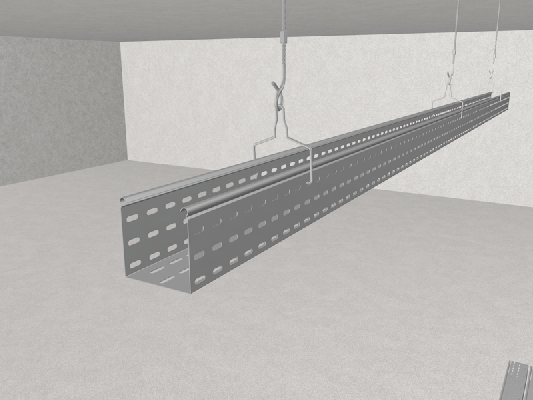

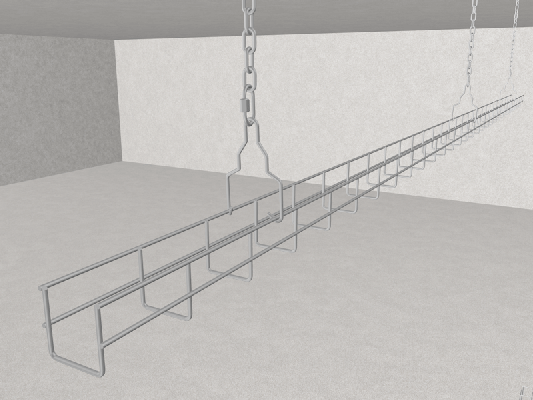

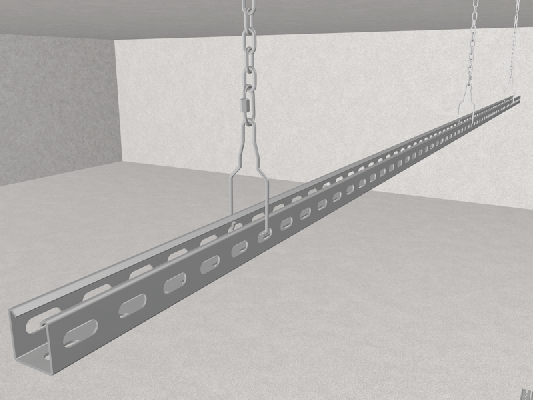

Examples
