WD Hanger

Overview

Application
Suspending cable routes and profiles.

Material
Electro-galvanised steel (EG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

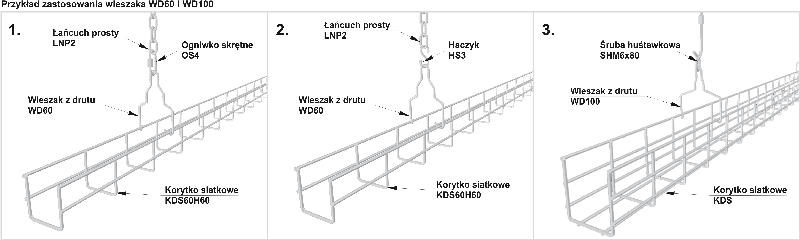

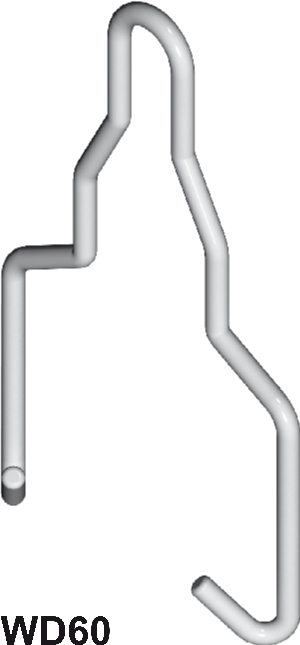

Hanger WD60 fits to wire mesh cable tray KDS60H60.

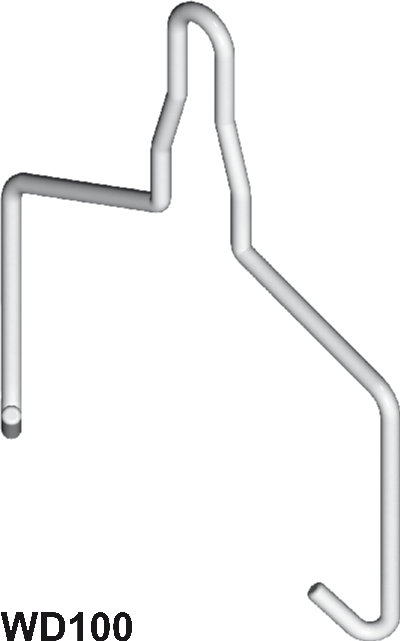

Hanger WD100 fits to KDS…100H30, H60, H110

Back to top ↑

Versions

Symbol Width a [mm] Catalogue number Quantity in box Height H [mm] Weight 1 pc. Maximum load Fmax[kN]
WD60 60 920000 100 115 0,03 0,55
WD100 100 940000 50 130 0,03 0,40
